Genset Diesel Deutz 28—120kW Tenaga Mesin Diesel Deutz

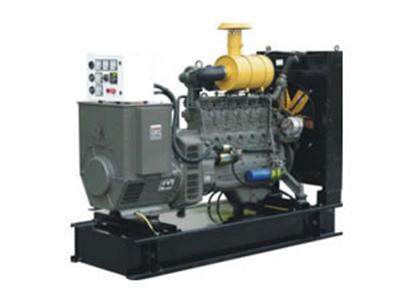

Deutz Diesel Engine Powered 28-120kW Deutz Diesel Generator
The 28-120kW Deutz diesel generator powered by Deutz (Sino-Germany) series diesel engine, is equipped with famous brushless excitation alternators of Marathon and Stamford, and intelligent control panels.

With automatic protective device, Deutz diesel generator can automatically control and regulate the water temperature, oil temperature, oil pressure, and speed. It has many advantages such as automatic speed regulation, automatic voltage regulation, good dynamic performance, stable fluctuation of voltage, high efficiency, high reliability, long service life, and more. These generators can be combined as a power station group with automatic start system in accordance with customer's requirements.

DEUTZ was founded 1864 in Cologne, Germany. Now DEUTZ is the world's oldest engine manufacturer. DEUTZ, with annual sales of about Euro1,200 million, is one of the leading independent suppliers of diesel and gas engines in the world.

Detailed Information of Deutz Diesel Generator (28~120kW)
Power output range 25-150kVA
Engine model D226B-3D, TD226B-3D, TD226B-4D, TD226B-6D, TBD226B-6D, TDB226B-6D5
Alternator a) Marathon (Sino-USA) b) Stamford (Sino-UK)
Rated voltage 100-400V
Rated frequency 50/60Hz
Mode of connection single or 3 phases
Rated power factor 0.8 (lagging)
Wave distortion less than 10%
Power supply voltage 24V
Volt fluctuating < 0.5%
Volt / frequency fluctuating ≈0.5

Features of Deutz Diesel Generator (28~120kW)
1) Small volume, light weight, low noise, low fuel consumption
2) Water-cooling with water tank and fan
3) Start by key / auto start
4) Monitoring meters and control switches
5) Protection provided for short-circuiting over-current, over-speed, high water temperature and low oil pressure
6) Soundproof / weatherproof canopy is optional
7) Supply scope of standard parts: industrial type silencer, exhaust pipe, flexible exhaust bellows, vibration-damping rubber, lead-acid battery, connecting cables of battery, users' manual and technical papers

Specifications of Deutz Diesel Generator
1) Engine

a) Multi-cylinder in-line or VEE engine, 4-stroke, direct injection
b) Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
c) Mechanical or electronic governor
d) Fuel injection pump
e) Electric motor starting system
f) Forge steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
g) Low discharge, and low fuel consumption
h) Installing conveniently, and maintaining easily
2) Alternator (Marathon / Stamford)
a) Brushless, self-excited, 4-pole, single bearing
b) AVR self-regulated
c) IP21 protection grade, class H insulation
d) Voltage regulation rate ±1%
e) Radio interference restraining accords with the stipulations of VDE0875-N and GB/T2820
f) Moisture-proof, sand-proof, dust-proof, salt-proof and vibration-proof
g) Small volume
h) Light weight

Daewoo Industrial Diesel Generator 60Hz 220V/440V
Deutz Series Generator Set 50Hz 230V/400V
Model Power (kw/kVA) Engine Model Alternator Model Dimension Weight
Prime Standby Open Type Sound Proof Open Type Sound Proof
RDL28 28/35 30.8/38.5 D226B-3D LSA43.2S1 1650×760×1350 2500×1000×1500 720 1450
RDL40 40/50 44/55 TD226B-3D LSA43.2S35 1650×760×1350 2500×1000×1500 740 1450
RDL54 54.4/68 59.8/75 TD226B-4D LSA43.2L68 2000×760×1400 2650×1000×1550 1000 1700
RDL80 80/100 88/110 TD226B-6D LSA44.2S75 2200×800×1500 2900×1080×1650 1250 1850
RDL100 108/135 118.8/149 TBD226B-6D LSA44.2S75 2300×800×1550 3200×1080×1650 1450 2150
RDL120 120/150 132/165 TBD226B-6D5 LSA44.2M95 2400×800×1550 3200×1080×1650 1500 2350
Deutz Series Generator Set 60Hz 220V/440V
Model Power (kw/kVA) Engine Model Alternator Model Dimension Weight
Prime Standby Open Type Sound Proof Open Type Sound Proof
RDL32-60 32/40 35.2/44 D226B-3D LSA43.2S1 1650×760×1350 2500×1000×1500 720 1450
RDL44-60 44.8/56 49.2/61.6 TD226B-3D LSA43.2S35 1650×760×1350 2500×1000×1500 740 1450
RDL64-60 64/80 70.4/88 TD226B-4D LSA43.2L8 2000×760×1400 2650×1000×1550 1000 1700
RDL94-60 94.4/118 104/130 TD226B-6D LSA44.2VS45 2200×800×1500 2900×1080×1650 1250 1850
RDL120-60 121.6/152 133.7/167.2 TBD226B-6D LSA44.2M95 2300×800×1550 3200×1080×1650 1450 2150
